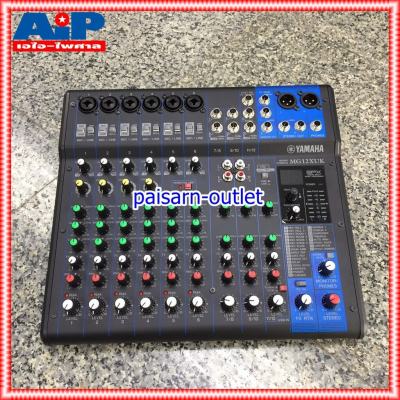

- YAMAHA MG-12XUK MIXERวอลลุ่มหมุน
- YAMAHA MG12XUK มิกเซอร์ 12 ชาแนล Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)
- Features
- - 12-Channel Mixing Console
- - Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo)
- - 1 Stereo Bus
- - 1 AUX (incl. FX)
- - “D-PRE” mic preamps with an inverted Darlington circuit
- - 1-Knob compressors
- - High-grade effects: SPX with 24 programs
- - 24-bit / 192kHz 2in / 2out USB Audio functions
- - Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- - Includes Cubase Al DAW software download version
- Cubasis LE for iPad available at App Store
- - PAD switch on mono inputs
- - +48V phantom power
- - XLR balanced outputs
- - Metal chassis
- - Dimensions(W×H×D): 315 mm x 91 mm x 297 mm (12.4" x3.6" x11.7")
- - Net Weight: 3.0 kg (6.62 lbs.)
- Specifications
- Outline : MG12XUK
- Mixing capability : On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN
- CH on/off)
- I/O : Phantom power : +48 V
- Digital I/O : USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
- Input Channels : Mono[MIC/LINE] : 6
- Stereo[LINE] : 3
- Output Channels : STEREO OUT : 2
- MONITOR OUT : 1
- PHONES : 1
- AUX SEND : 1
- Bus : Stereo: 1, AUX[FX]: 1
- Input Channel Function : PAD : 26 dB (Mono)
- HPF : 80 Hz, 12 dB/oct (Mono)
- COMP : 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0
- dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter : 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
- General specifications : MG12XUK
- Total harmonic distortion : 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN
- knob: Min
- Frequency response : +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level : Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
- Crosstalk : -83 dB
- Power requirements : PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
- Power consumption : 22.9 W
- Dimensions : W : 315 mm (12.4")
- H : 91 mm (3.6")
- D : 297mm (11.7")
- Net weight : 3.0kg(6.62 lbs)
- Accessories : Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical
- Specifications, Optional Accessory: Foot Switch FC5
- Others : Operating Temperature: 0 to +40?C
