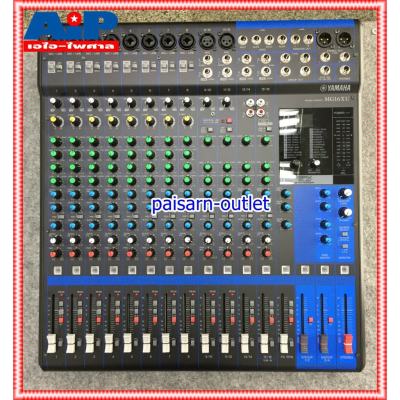

- YAMAHA MG-16XU MIXER
- 16-Channel Mixing Console
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus
- 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase Al DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rack Mount Kit Included
- Metal chassis
- Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
- Net Weight: 6.8 kg (15.0 lbs.)
- Outline
- Mixing capability : On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN
- CH on/off)
- I/O : Phantom power : +48 V
- Digital I/O : USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
- Input Channels : Mono[MIC/LINE] : 8
- Mono/Stereo[MIC/LINE] : 2
- Stereo[LINE] : 2
- Output Channels : STEREO OUT : 2
- MONITOR OUT : 1
- PHONES : 1
- AUX SEND : 4
- GROUP OUT : 4
- Bus : Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
- Input Channel Function : PAD : 26 dB (Mono)
- HPF : 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
- COMP : 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1
- to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time:
- approx. 300 msec
- EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID : Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz
- peaking
- EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter : 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30
- dB]
- General specifications
- Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN
- knob: Min
- Frequency response : +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level : Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise : -102 dBu (STEREO OUT, STEREO master fader: Min)
- Crosstalk : -78 dB
- Power requirements : AC 100 – 240 V, 50 / 60 Hz
- Power consumption : 30 W
- Dimensions : W : 444 mm (17.5")
- H : 130 mm (5.1")
- D : 500 mm (19.7")
- Net weight : 6.8 kg (15.0 lbs.)
- Accessories : Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download
- Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
- Others : Operating Temperature: 0 to +40?C
