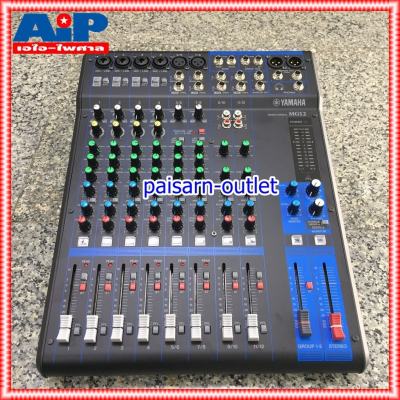

- YAMAHA MG-12 MIXER
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available
- Metal chassis
- 308 mm x 118 mm x 422 mm (9.6" x 2.8" x 11.6")
- Net Weight: 4.0 kg (8.8 lbs.)
- Outline
- I/O : Phantom power : +48 V
- Input Channels : Mono[MIC/LINE] : 4
- Mono/Stereo[MIC/LINE] : 2
- Stereo[LINE] : 2
- Output Channels : STEREO OUT : 2
- MONITOR OUT : 1
- PHONES : 1
- AUX SEND : 2
- GROUP OUT : 2
- Bus Stereo : 1, GROUP: 2, AUX: 2
- Input Channel Function : PAD : 26 dB (Mono)
- HPF : 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
- COMP : 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1
- to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time:
- approx. 300 msec
- EQ HIGH Gain : +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
- EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter : 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30
- dB]
- General specifications
- Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN
- knob: Min
- Frequency response : +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level : Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise : -102 dBu (STEREO OUT, STEREO master fader: Min)
- Crosstalk : -78 dB
- Power requirements : AC 100 – 240 V, 50 / 60 Hz
- Power consumption : 22 W
- Dimensions : W : 308 mm (9.6")
- H : 118 mm (2.8")
- D : 422 mm (11.6")
- Net weight : 4.0 kg (8.8 lbs.)
- Accessories : Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory:
- Rack-mount kit RK-MG12
- Others
