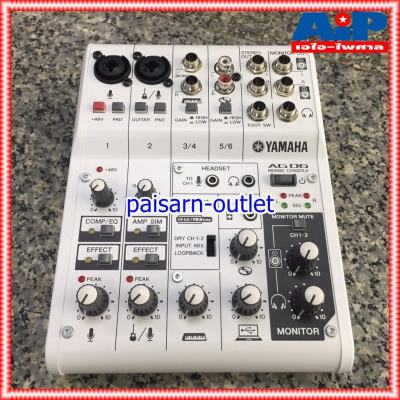

- YAMAHA AG-06 MIXER
- มิกเซอร์ขนาดเล็กสำหรับงานหลากหลายรูปแบบ โดยเฉพาะการที่มีค่าความละเอียด หรือ Sampling ragte สูงถึง 24/192 kHZ
- จึงเหมาะที่นำมาใช้เป็น Audio Interface สำหรับงานบันทึกเสียงต่างๆ
- เครื่องผสมสัญญาณเสียง YAMAHA AG06 2x Mic/Line Combo Input, Stereo 1/4″ & RCA Line Inputs, 2x “D-PRE” Mic Preamps, Record and Playback up to 24-Bit/192 kHz, Built-In DSP, 48V Phantom Power, USB Bus or iPad Powered, Works With PC, Mac and iPad
- The AG06 from Yamaha is a compact 6-input mixer and USB interface with built-in DSP for sound-reinforcement and recording of small performances, podcasts, lectures and similar applications. Capable of recording and playback of high-resolution 24-bit/192 kHz sound, this mixer features two XLR/1/4″ combo mic/line inputs, as well as stereo 1/4″ and RCA line inputs with level control, and a Hi-Z switch for direct recording of guitar and bass. The mixer is compatible with Windows, Mac and iPad.
- One XLR/1/4″ combo mic/line input is equipped with a D-PRE mic preamp that was originally designed by Yamaha for use in their high-end recording gear. This channel features switchable 48V phantom power for use with dynamic and condenser microphones, and also features a pad switch for recording loud sound sources such as guitar amplifiers.
- The AG06 mixer has two stereo 1/4″ outs for connecting to your PA system or monitor speakers. It also has a 1/4″ headphone output with level control for personal monitoring, as well as an 1/8″ aux input for monitoring portable devices and headset connectivity.
- Features:
- - USB mixer and audio interface for webcasting, gaming, and music production
- - Built-in DSP for EQ, compression, filtering, and reverb
- - Loopback mode combines all inputs and playback channels for easy internet streaming
- - Outstanding audio quality, with D-PRE mic preamps and 24-bit/192kHz resolution
- - Ready for your microphone, guitar, keyboard, and even your gaming headset
- - Includes Cubase Al downloadable version
- SPECIFICATIONS
- Phantom Power : +48 V
- Input Channels : Mono [MIC/LINE]: 2 including HEADSET MIC (Plug-in Power)
- Stereo [LINE]: 2
- Aux: 1
- Output Channels : Stereo Out: 1
- Monitor Out: 1
- Phones: 2 including headset phones
- Bus : Stereo: 1
- Pad : 26 dB
- Meter Peak Indication : LED turns on when the signal reaches 3 dB below clipping level
- DSP : CH1: COMP / EQ, EFFECT (SPX Reverb)
- CH2: AMP SIM, EFFECT (SPX Reverb)
- Level Metering : USB Output Level; 2 x 2 point LED meter [PEAK, SIG]
- USB Audio : 2 in / 2 out, USB Audio Class 2.0 compliant
- Sampling Frequency: Max 192 kHz
- Bit Depth: 24-bit
- Power Requirements : DC 5 V, 500 mA
- Power Consumption : Max. 2.5 W
- System Requirements : Windows 7 or later / Mac OS X 10.7 or later (Now compatible with Mac OS 10.12 Sierra)
- Options : Footswitch: FC5
- Mic Stand Adapter: BMS-10A
- Operating Temperature : 32 to 104°F (0 to 40°C)
- Dimensions : 6.1 x 2.5 x 8.0″ (155 x 63 x 202 mm)
- Weight : 2.2 lb (1.0 kg)
