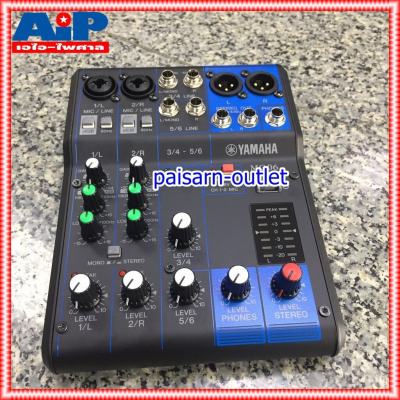

- YAMAHA MG-06 MIXER
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W?H?D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
- Specs
- Outline
- I/O : Phantom power : +48 V
- Input Channels : Mono[MIC/LINE] : 2
- Stereo[LINE] : 2
- Output Channels : STEREO OUT : 2
- PHONES : 1
- Bus : Stereo : 1
- Input Channel Function : PAD : 26 dB (Mono)
- HPF : 80 Hz, 12 dB/oct (Mono)
- EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
- General specifications
- Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN
- knob: Min
- Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level : Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)
- Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
- Crosstalk -88 dB
- Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length
- = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
- Power consumption : 12 W
- Dimensions : W : 149 mm (5.9")
- H : 62 mm (2.4")
- D : 202 mm (7.9")
- Net weight : 0.9 kg (1.98 lbs.)
- Accessories : Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic
- Stand Adaptor BMS-10A
- Others : Operating Temperature: 0 to +40?C
รายละเอียดสินค้า >>
YAMAHA MG-06 MIXER มิกซ์ มิกเซอร์ มิกซ์YAMAHA เครื่องเสียง เครื่องปรับแต่งเสียง MIX เอไอ-ไพศาล +++ มีโค้ดส่วนลด มีส่วนลดราคาประหยัดที่สุด
